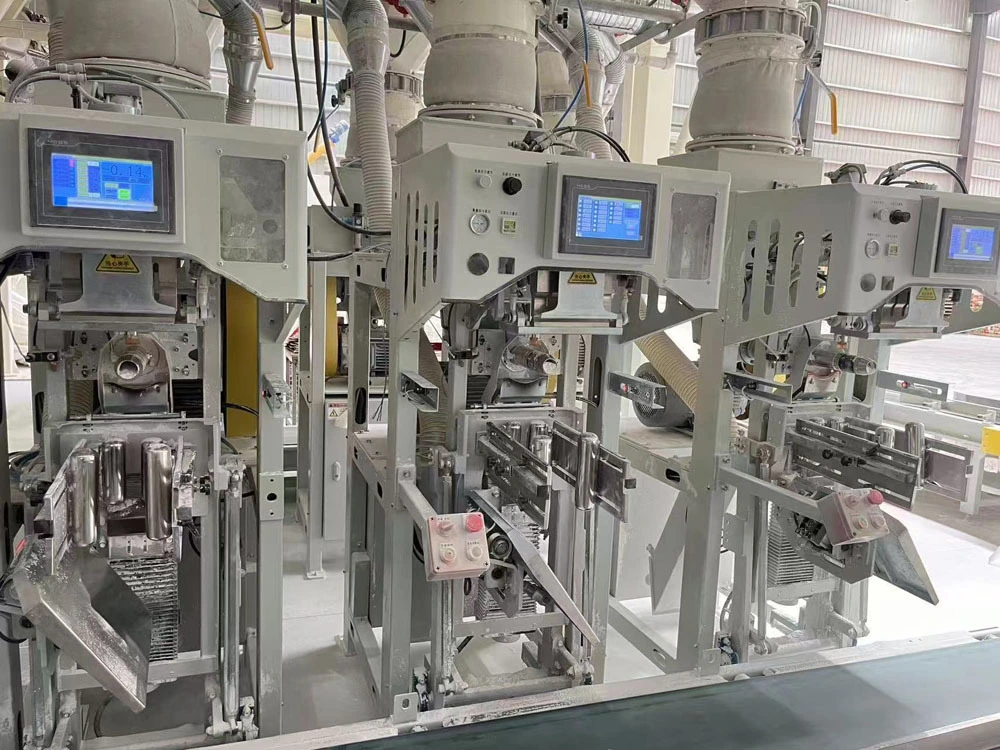

Automatic Air-Floating Packaging Machine for Valve Bag
Product Description
The dosing (by weight) of each bag is carried out according to the "gross weight" principle, and the product is continuously weighed together with the bag as it is filled. When the set weight is reached, the discharge nozzle of the packaging machine will automatically stop discharging, and the finished bag will be pushed away from the packaging machine through the bag pushing device to complete the bag filling process. Usually the bags will automatically fall to the lower belt conveyor and be transported to the following palletizing process.
The performance of a filling machine is directly related to each bag weight. When packing the product with a bulk density of 1000 kg/m³ in 50 kg bags, the filling capacity is about 18 t/h. The properties of the packed product have a significant influence on the filling rate.
Independent adjustment of the compressed air pressure supplied to the filling pipe, allows you to use the filling machine to work with various products, including those that are difficult in terms of filling. The free section of the dosing valve in the "thin" flow mode is adjustable, which allows you to adjust the dosing error in the required range.
Working Principle
The filling machine is designed to fill valve-type bags with various bulk products. It can be used for packing dry building mixes, cement, gypsum, dry paints, flour and other materials.
Key Parameters
|
Packing weight |
10-60kg per bag |
|
Filling Accuracy |
≤±0.6% |
|
Packing speed |
200-280pcs/h for cement 25kg. |
|
Max. Material size |
5mm |
|
Pneumatic source |
Pressure≥0.5Mpa |
|
Nozzle diameter |
standard φ63mm, can be made upon request. |
|
Bag opening size |
≥φ70mm(standard) |
|
Feed port of packing machine |
φ300mm |
