Column Palletizer (Mini Palletizer)
Column palletizer can also be called Rotary palletizer, Single Column palletizer, or Coordinate palletizer, it is the most concise and compact type of palletizer. The Column Palletizer can handle bags containing stable, aerated or powdery products, permitting partial overlapping of the bags in the layer along both the top and sides, offering flexible format changes. Its extreme simplicity makes it possible to palletise even on pallets sitting directly on the floor.
Capacity：~500 bags per hour
● Very compact size
● The machine features a PLC-controlled operating system.
●Through special programs, the machine can perform virtually any type of palletizing program.
Product Description

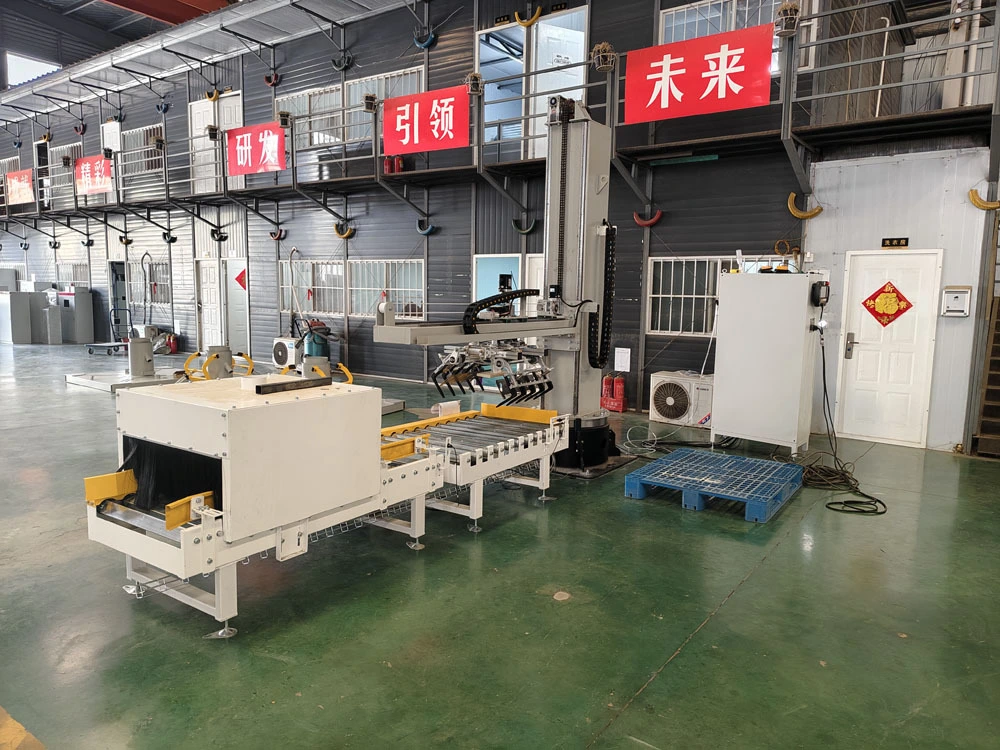

Column palletizer features a sturdy rotating column with a rigid horizontal arm connected to it that can slide vertically along the column. The horizontal arm has a bag pick-up gripper mounted on it that slides along it, rotating around its vertical axis.The machine takes the bags one at a time from the roller conveyor on which they arrive and places them at the point assigned by the program.The horizontal arm descends to the necessary height so that the gripper can pick up the bags from the bag infeed roller conveyor and then it ascends to permit free rotation of the main column. The gripper traverses along the arm and rotates around the main column to place the bag in the position assigned by the programmed palletising pattern.
● Possibility of palletizing from several pickup points, in order to handle bags from different bagging lines in one or more palletizing points.
● Possibility of palletizing on pallets set directly on the floor.
● Very compact size
● The machine features a PLC-controlled operating system.
● Through special programs, the machine can perform virtually any type of palletizing program.
● The format and program changes are carried out automatically and very quickly.
Working Principle
The arm is positioned at the required height and the gripper opens to place the bag on the pallet being formed. At this point, the machine returns to the starting point and is ready for a new cycle.
