CSPMAC Powder Mixing Equipment Made in China

Product details of the powder mixing equipment

Product Information

CSPMAC powder mixing equipment combines high performance materials with trendy and innovative design. Every aspect of the product, such as performance, durability, usability, and so on, has been carefully tested and inspected during the production and before shipment. ZHENGZHOU CSP MACHINERY CO.,LTD. has decades of years of powder mixing equipment customization experience.

Product Description

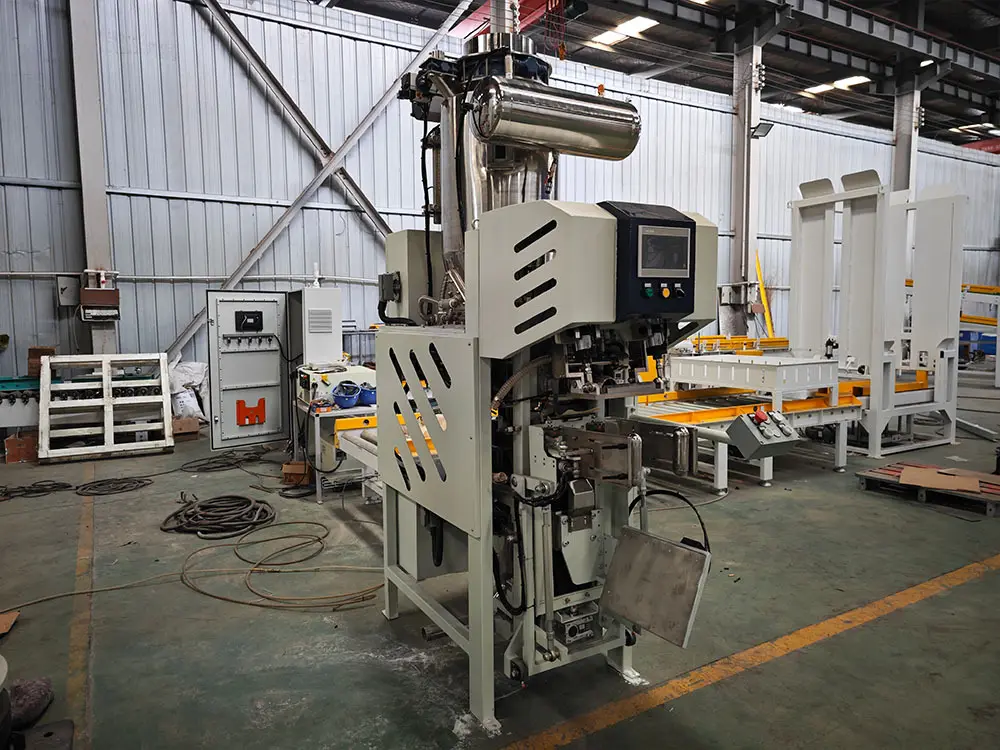

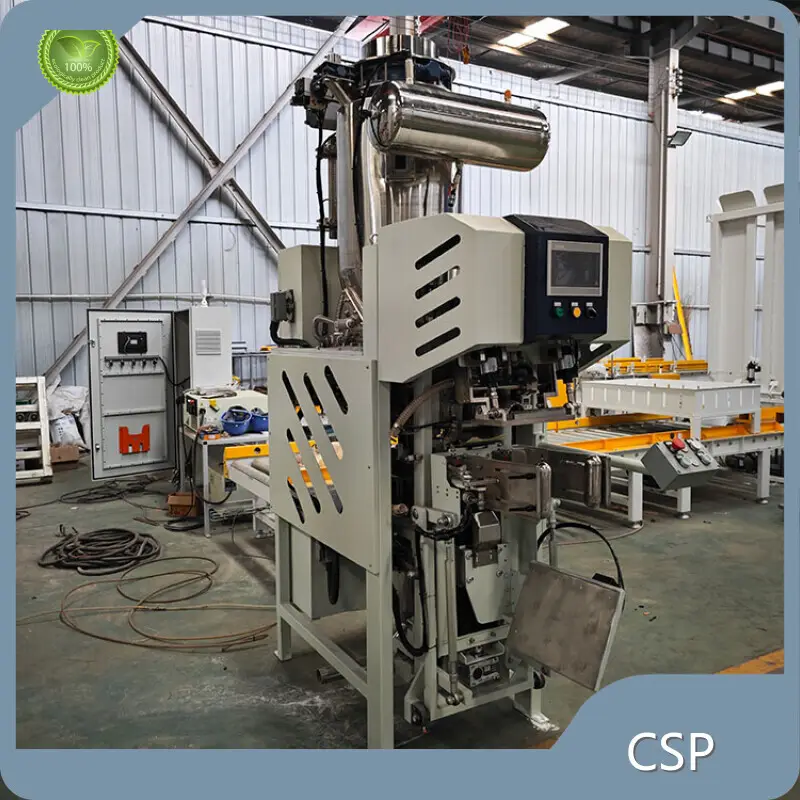

This automatic packaging machine performs a series of operations, including automatic metering, bag loading, filling, and heat sealing, eliminating the need for manual operation. This saves manpower and reduces long-term costs. It can also be integrated with other supporting equipment to complete the entire production line. This weighing machine is primarily used in the agricultural, food, feed, and chemical industries for packaging fluid materials such as corn kernels, seeds, flour, and sugar.

● High precision, high speed, and zero dust emission.

● 316 microplates are maintenance-free for life.

● The button-operated bag support plate allows for quick and easy adjustment.

● The adaptive bag clamping device eliminates the need for adjustment for varying bag thicknesses.

● An optional pneumatic conveyor for residual material is available to transport residual material to the finished product bin.

● An optional ultrasonic sealing device is available.

Working Principle

The open top bag filling machine consists of a control system, a feeder, a weighing sensor, a clamping device for bags, a selaing mechanism, a belt conveyor, a frame, and a pneumatic control system. The feeding system uses two-speed feeding, fast feeding ensures output, and slow feeding frequency conversion control ensures accuracy; bag clamp weighing system consists of weighing brackets, sensors and bag clamp arms; the frame supports the entire system, providing stability; The control system controls the feed valve and the bag clamp. The packing shape of the product adopts the clamping of the bag in place, and at the same time, there is enough material in the storage bin, the valve automatically opens, the material is discharged into the bag, and weighing is carried out at the same time. When the first target weight is reached, slow feed continues until the second target weight is reached, stop filling, display the final weighing and automatically lose the bag.

螺旋输送结构

皮带输送结构 (3)

application areas

Full Pneumatic Valve Bag Packing Machine is a specialized automated equipment designed for packaging powdered and granular materials, particularly suitable for valve bags that require high density, moisture-proof, and leak-proof packaging.

3 (20)

2 (24)

product case

11 (6)

5 (17)

4 (20)

12 (5)

Company Feature

• CSP's location enjoys a comprehensive traffic network, which is good for the distribution of products.
• CSP's elite teams are comprised of passionate and excellent staff who make a great contribution to corporate development.
• Since it was founded in our company has been experiencing continuous struggle and challenge for years. We have accumulated a lot of experience and abundant economic strength. It can promote the multiplication of our benefits.
• CSP attaches great importance to service. We are committed to providing excellent service for customers based on professional service know-how.
• CSP's Mixed production line,Packaging and palletizing production line are not only sold in Mainland China, but also exported to some countries and regions overseas. We enjoy a relatively wide recognition in the industry.
We are sincerely looking forward to establishing a long-term cooperation with all customers!
