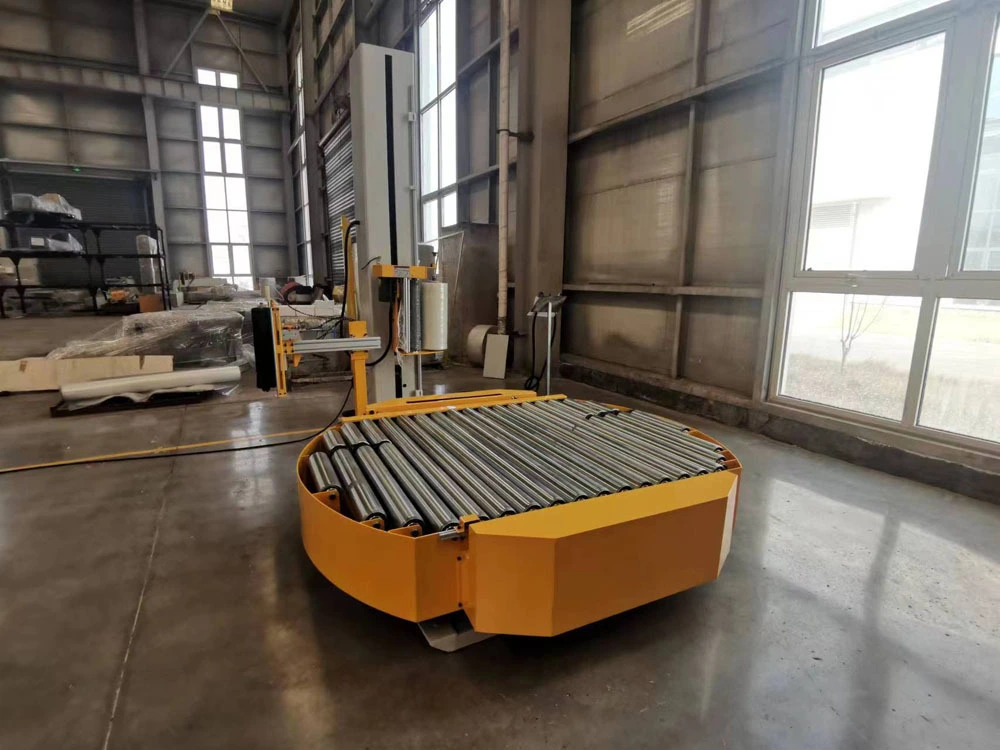

Pallet wrapping machine (pallet wrapper)
Our pallet wrapping machine is a high-end pallet packaging solution designed to simplify the packaging process and protect your products. With intuitive man-machine operation interface, advanced safety features and a durable design, it's ideal for a variety of industries including dry mortar production, logistics, food and beverage and more.
● Capacity：~20-40pcs pallets per hour
Product Description
Pallet wrapping machine is an automatic packaging equipment, which is used to tightly wrap stretch film around pallet goods to protect goods and improve transportation efficiency. It is suitable for wrapping goods after being palletized, which can prevent the product from spilling during packaging, improve efficiency, improve packaging effect, and increase the added value of the product. The corresponding assembly line can carry out automatic packaging.
The working principle of the pallet wrapping machine is to put the pallet on the machine turntable and fix the stretch film on the wrapping frame above the pallet. Then, the machine will start to rotate automatically and wrap the stretch film around the goods until the set number of wrapping layers or wrapping tension is reached. Finally, the stretch film will be cut to complete the entire packaging process.
Pallet wrapping machine is divided into TP single machine series and HTP production line automatic series.
Key Parameters
|
Wrapping specifications |
(L*W*H) (1100mm-1300mm)mm*(1000mm-1200mm)*800-1900mm |
|
Packaging efficiency |
20~35 pallet/hour |
|
Turntable specification |
φ2000mm |
|
Drum Length |
1300mm |
|
Drum diameter |
89mm |
|
Drum center distance |
100mm |
|
Turntable height |
600mm±50mm (height adjustable) |
|
Turntable bearing capacity |
200-1500Kg |
|
Turntable speed |
5~15rpm |
|
Roller conveying speed |
4-12m/min |
|
Film frame lifting speed |
90mm/s |
|
Film frame mechanism |
pre-stretching mechanism |
|
Power/voltage |
3.2KW/AC380V 50HZ |
|
Air pressure |
0.4-0.6Mpa (φ8mm connector) |
|
Packaging material |
LLDPE stretch film |
|
Thickness |
17~30um Width: 500mm |
|
Automatic upper cut-off film |
electric fuse blown |
|
Machine weight |
1500Kg |
|
Equipment size |
3400*2000*3000mm (column height) |
|
Packing size range |
(500-1100mm)*(500-1200mm) |
|
Rotary table dia |
1650mm (could be customized) |
|
Packing efficiency |
30-40 pallet/hour |
|
Packing height |
2000mm (could be customized) |
|
Column height |
2400mm |
|
Rotary table height |
85mm |
|
Rotary table load bearing |
2000kg (could be customized) |
|
Rotary table speed |
0-12 r/min |
|
Machine overall dimension |
L2600*W1650*H2485mm |
|
Power |
220V single phase, could be customized |
|
Total power |
1.55kw |
|
Applicable film |
15~35μm pre-stretched machine stretch film (recommended to use 25μm) |
