19+ years of experience - Comprehensive solutions supplier for mixing and packaging of powder and granular materials.
Dry Powder Mixing Machine by CSPMAC
Product details of the dry powder mixing machine
Product Description
CSPMAC dry powder mixing machine is manufactured using high quality materials under the strict supervision of quality experts. The product has an extended service life to deliver an enduring performance. Service is the main soft power for ZHENGZHOU CSP MACHINERY CO.,LTD..
Product Description

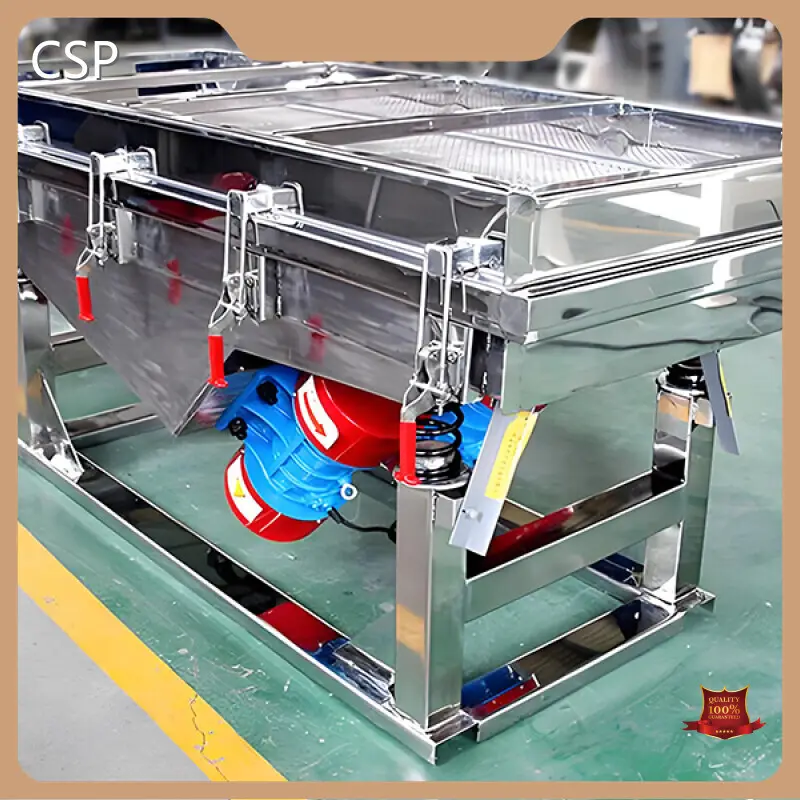

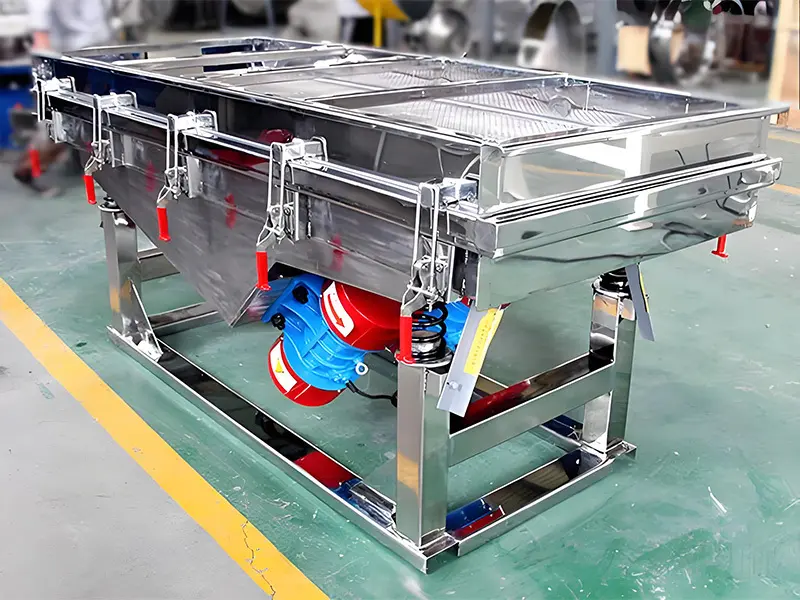

Linear vibrating screen is a kind of screening and grading screen widely used in mining, coal, electricity, chemical, building materials, food, medicine and other industries. The materials are graded and screened according to the particle size. Its vibration mode is linear vibration, mainly composed of screen box, screen frame, screen, vibration motor, shock-absorbing spring, etc.
Important note: Equipment selection is a relatively important link. Please provide detailed information about the materials and process arrangements as much as possible so that our professionals can provide you with high-quality technical services.
Working Principle
The working principle of the linear vibrating screen is based on a single-degree-of-freedom linear vibration system. The screen box is driven by two vibration motors to generate linear vibration. When the vibration motors rotate in the same direction at the same time, the linear vibration generated causes the material in the screen box to move forward on the screen surface. Particles smaller than the screen hole will leak through the screen hole, while particles larger than the screen hole will remain on the screen surface, thereby achieving screening operations. When the vibration motors rotate in the opposite direction, the linear vibration generated causes the material in the screen box to move backward on the screen surface, so as to remove debris on the screen surface.
Key Parameters
|
Model |
Screen size（mm） |
Material particle size（mm） |
Screen surface inclination（°） |
Amplitude（mm） |
Layers（s） |
Power（kW） |
|
SZF516 |
500×1600 |
0.075~20 |
0~7 |
5~8 |
1~5 |
2×（0.08~0.4） |
|
SZF520 |
500×2000 |
2×（0.4~0.75） |
||||
|
SZF525 |
500×2500 |
2×（0.75~1.1） |
||||
|
SZF530 |
500×3000 |
2×（1.1~1.5） |
||||
|
SZF535 |
500×3500 |
2×（1.1~1.5） |
||||
|
SZF1020 |
1000×2000 |
2×（0.75~1.1） |
||||
|
SZF1025 |
1000×2500 |
2×（1.1~1.5） |
||||
|
SZF1030 |
1000×3000 |
2×（1.5~2.2） |
||||
|
SZF1035 |
1000×3500 |
2×2.2 |
||||
|
SZF1040 |
1000×4000 |
2×（2.2~3.0） |
||||
|
SZF1225 |
1200×2500 |
2×（1.5~2.2） |
||||
|
SZF1230 |
585×3000×2 |
2×（2.2~3.0） |
||||
|
SZF1235 |
585×3500×2 |
2×（2.2~3.0） |
||||
|
SZF1535 |
735×3500×2 |
2×（2.2~3.0） |
||||
|
SZF1540 |
735×4000×2 |
2×（3.0~4.0） |
Company Advantage
• We have our own team of professionals who use the industry experience accumulated over the years to guide the practice process and provide a guarantee for the production of high quality products.
• Our company is able to provide customers with high-quality products and professional services promptly, because we have established a relatively complete service system.
• Our company was registered in and has been developing for years. During these years, we have been focusing on the development of our main business. After continuous exploration, now we have made great achievements, summarized effective methods and gained valuable experience.
• Our company has obvious advantages in location and the transportation is convenient, laying a good foundation for the development.
We provide you with high-quality products and look forward to your inquiry.
