Industrial Automatic Pallet Wrapping Machine Company
Company Advantages
· Any color and any size are available for automatic pallet wrapping machine.
· This product has complete functions, complete specifications and is in great demand worldwide.
· ZHENGZHOU CSP MACHINERY CO.,LTD. has high ability of new product development and brand creation.
Product Description

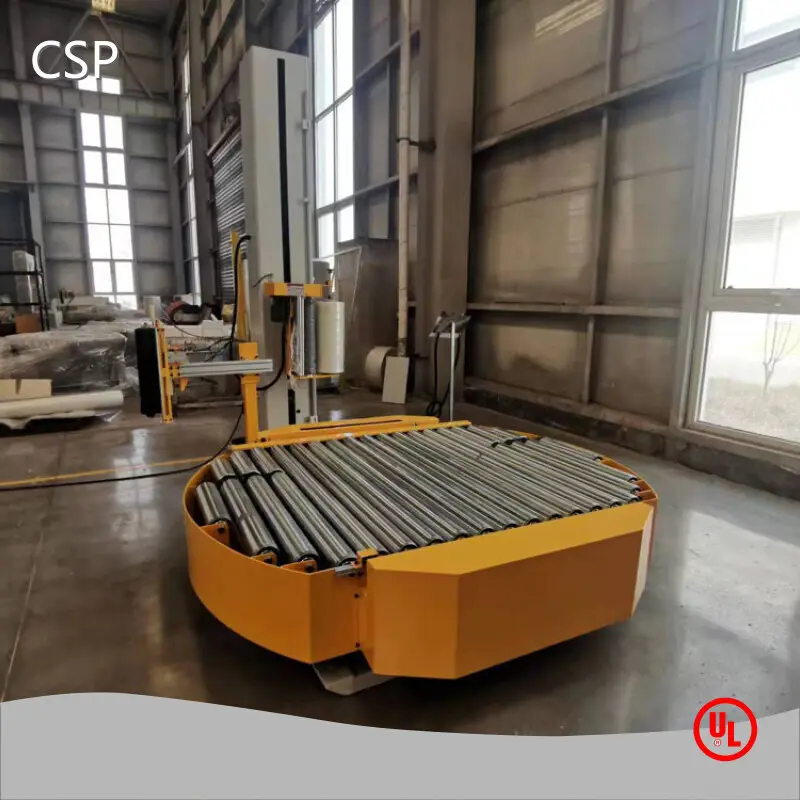

Pallet wrapping machine is an automatic packaging equipment, which is used to tightly wrap stretch film around pallet goods to protect goods and improve transportation efficiency. It is suitable for wrapping goods after being palletized, which can prevent the product from spilling during packaging, improve efficiency, improve packaging effect, and increase the added value of the product. The corresponding assembly line can carry out automatic packaging.
The working principle of the pallet wrapping machine is to put the pallet on the machine turntable and fix the stretch film on the wrapping frame above the pallet. Then, the machine will start to rotate automatically and wrap the stretch film around the goods until the set number of wrapping layers or wrapping tension is reached. Finally, the stretch film will be cut to complete the entire packaging process.
Pallet wrapping machine is divided into TP single machine series and HTP production line automatic series.
Key Parameters
|
Wrapping specifications |
(L*W*H) (1100mm-1300mm)mm*(1000mm-1200mm)*800-1900mm |
|
Packaging efficiency |
20~35 pallet/hour |
|
Turntable specification |
φ2000mm |
|
Drum Length |
1300mm |
|
Drum diameter |
89mm |
|
Drum center distance |
100mm |
|
Turntable height |
600mm±50mm (height adjustable) |
|
Turntable bearing capacity |
200-1500Kg |
|
Turntable speed |
5~15rpm |
|
Roller conveying speed |
4-12m/min |
|
Film frame lifting speed |
90mm/s |
|
Film frame mechanism |
pre-stretching mechanism |
|
Power/voltage |
3.2KW/AC380V 50HZ |
|
Air pressure |
0.4-0.6Mpa (φ8mm connector) |
|
Packaging material |
LLDPE stretch film |
|
Thickness |
17~30um Width: 500mm |
|
Automatic upper cut-off film |
electric fuse blown |
|
Machine weight |
1500Kg |
|
Equipment size |
3400*2000*3000mm (column height) |
|
Packing size range |
(500-1100mm)*(500-1200mm) |
|
Rotary table dia |
1650mm (could be customized) |
|
Packing efficiency |
30-40 pallet/hour |
|
Packing height |
2000mm (could be customized) |
|
Column height |
2400mm |
|
Rotary table height |
85mm |
|
Rotary table load bearing |
2000kg (could be customized) |
|
Rotary table speed |
0-12 r/min |
|
Machine overall dimension |
L2600*W1650*H2485mm |
|
Power |
220V single phase, could be customized |
|
Total power |
1.55kw |
|
Applicable film |
15~35μm pre-stretched machine stretch film (recommended to use 25μm) |
product case
Company Features
· ZHENGZHOU CSP MACHINERY CO.,LTD. takes pride in offering high-quality products such as automatic pallet wrapping machine. We have boasted rich production experience.
· CSPMAC has complete leading production machines to ensure the quality of automatic pallet wrapping machine. By the accumulation of multiple experienced technical methods, CSPMAC has its own ways of producing high quality automatic pallet wrapping machine. By strictly supervising each progress during the production, our experienced staff is also one of the factors which contribute to the popularity of automatic pallet wrapping machine.
· ZHENGZHOU CSP MACHINERY CO.,LTD. aims to improve the user experience and build brand fine reputation. Inquire now!
Product Details
We will show you more detailed information of automatic pallet wrapping machine.
Application of the Product
Our automatic pallet wrapping machine can be used in multiple areas of multiple industries.
Our company will modify and adjust the original solution according to the customer's needs. By doing so, we can provide solutions that best meet the customer's needs.
Product Comparison
Compared with similar products, CSP's automatic pallet wrapping machine has the following advantages.
