PRODUCTS Bag Packaging Equipment for Sale

Product details of the bag packaging equipment

Product Introduction

The raw materials used to manufacture CSPMAC bag packaging equipment are from well-known suppliers of premium quality materials who have been recognized by international certificates. Through strict quality inspection throughout the process, the product quality is guaranteed to meet industry standards. ZHENGZHOU CSP MACHINERY CO.,LTD. has perfect QC system and after-sales system to ensure quality and good user experience.

Product Description

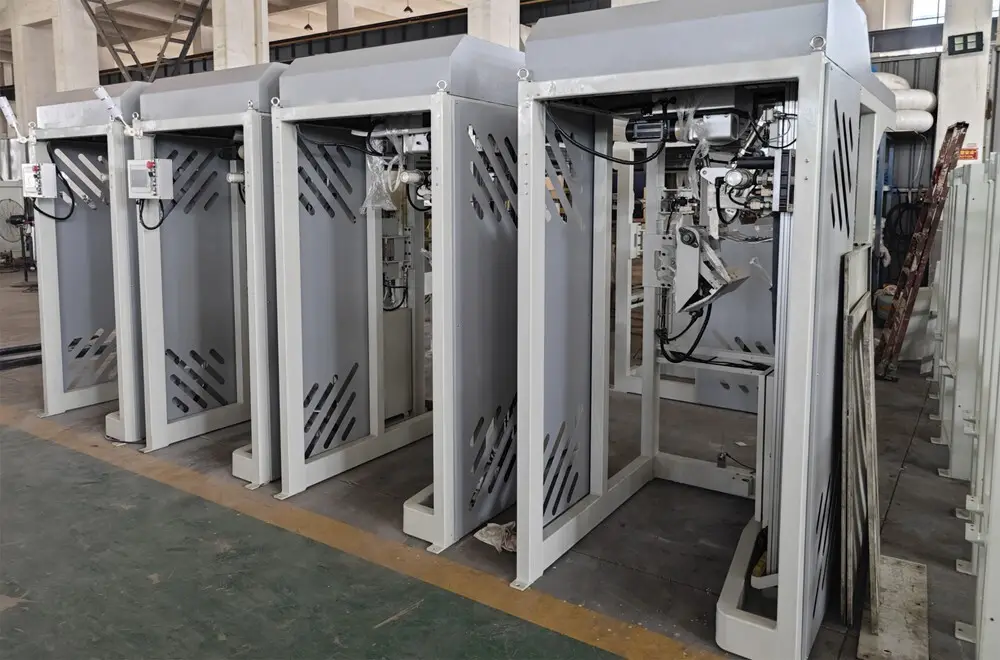

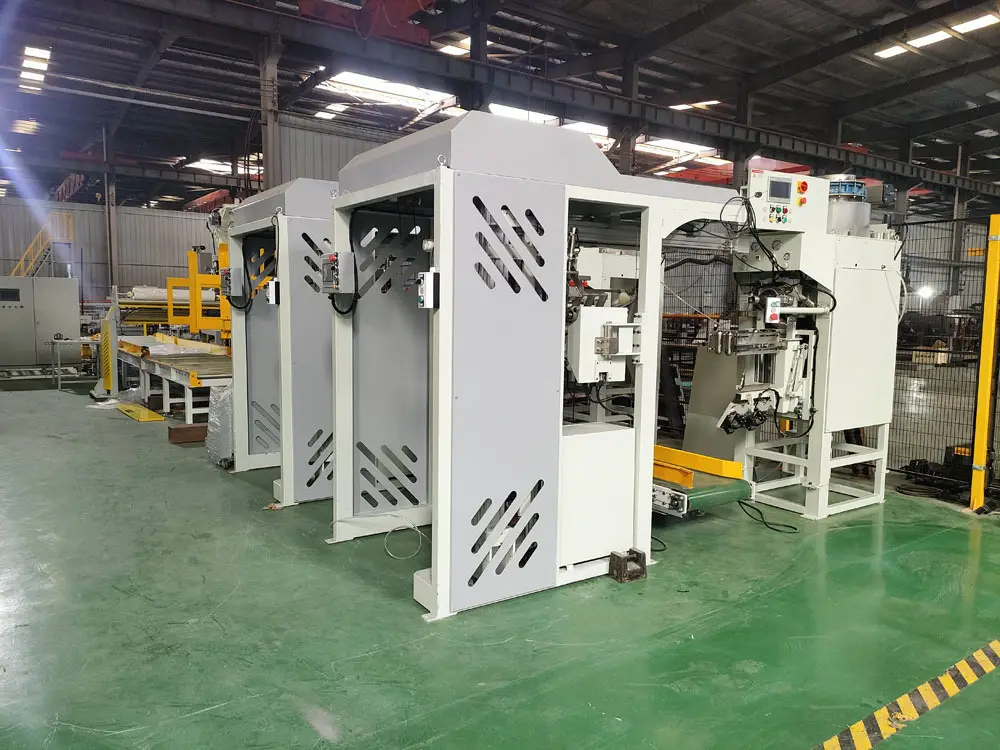

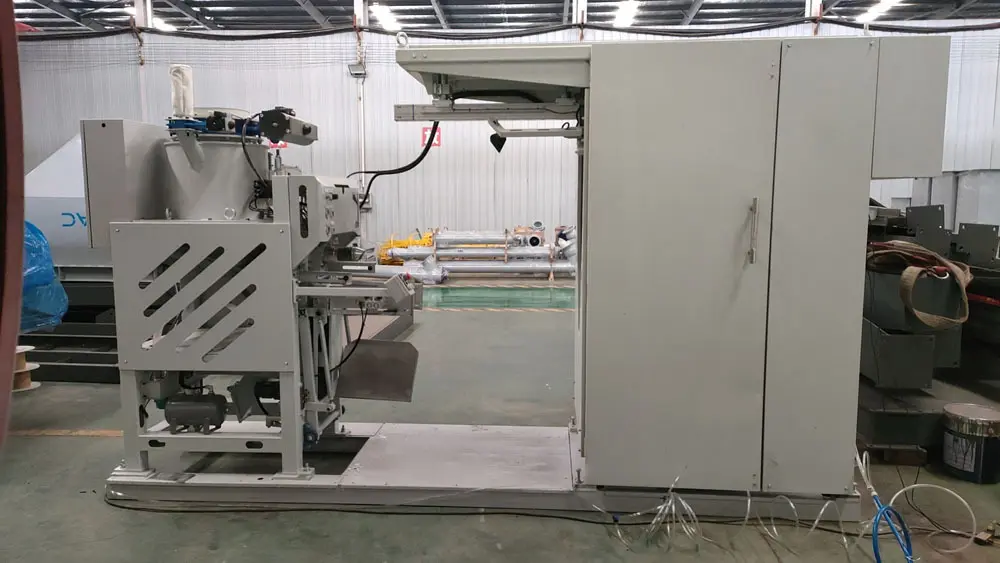

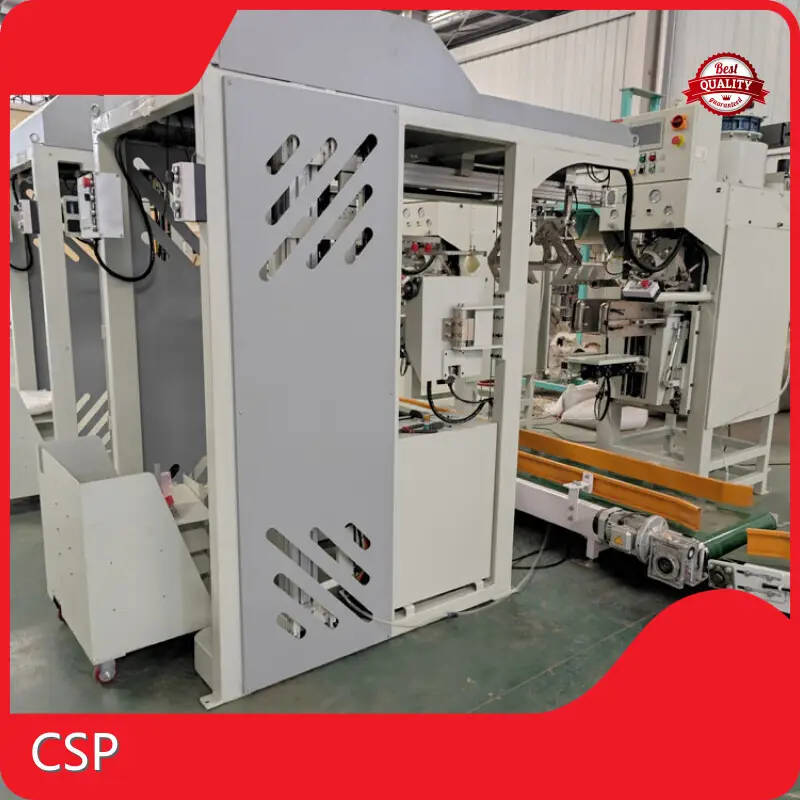

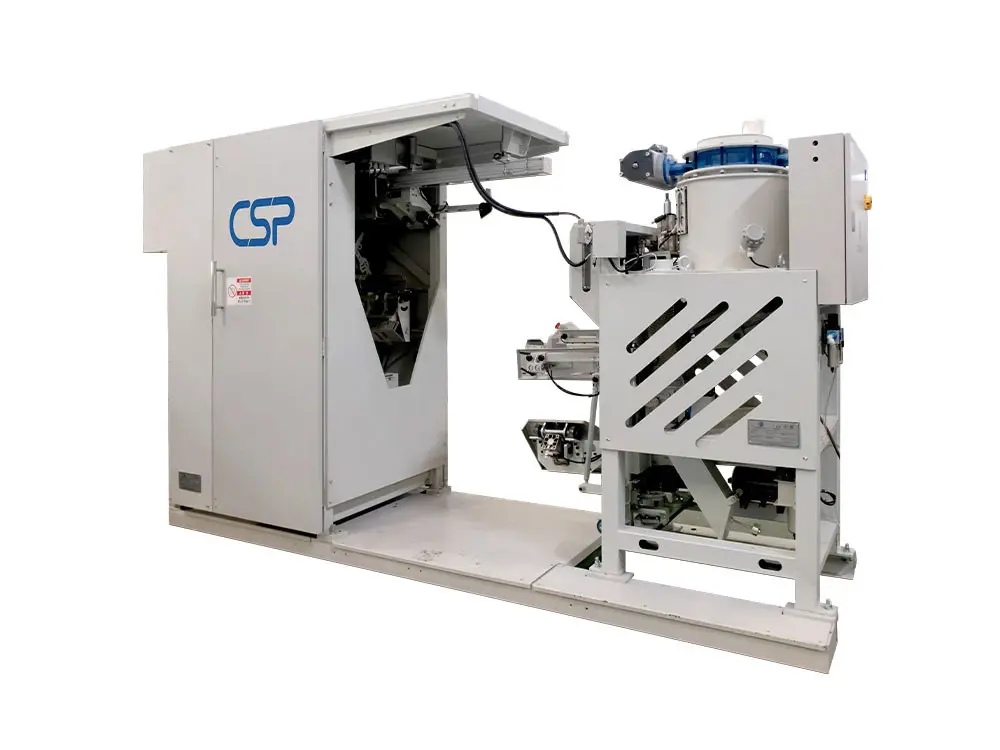

The bag placer can automatically complete the whole process of picking up the bag, lifting the bag to a specific height, opening the valve port of the bag, and placing the bag valve port on the discharge nozzle of the packing machine. The automatic bag placer consists of two parts: Bag cart and host machine. Each bag placer (bagging machine) is equipped with two bag carts, which can alternately supply bags to ensure that the bag placer can achieve uninterrupted continuous operation.

The bag placer is fully automatic controlled by PLC, and can be connected with the packaging machine PLC, so that the parameters of the whole process from bag placing to material filling into bags can be set only through the bag placer PLC control panel. Multiple bag placers and packaging machines can also realize PLC linkage.

Working Principle

The open top bag filling machine consists of a control system, a feeder, a weighing sensor, a clamping device for bags, a selaing mechanism, a belt conveyor, a frame, and a pneumatic control system. The feeding system uses two-speed feeding, fast feeding ensures output, and slow feeding frequency conversion control ensures accuracy; bag clamp weighing system consists of weighing brackets, sensors and bag clamp arms; the frame supports the entire system, providing stability; The control system controls the feed valve and the bag clamp. The packing shape of the product adopts the clamping of the bag in place, and at the same time, there is enough material in the storage bin, the valve automatically opens, the material is discharged into the bag, and weighing is carried out at the same time. When the first target weight is reached, slow feed continues until the second target weight is reached, stop filling, display the final weighing and automatically lose the bag.

螺旋输送结构

皮带输送结构 (3)

application areas

Full Pneumatic Valve Bag Packing Machine is a specialized automated equipment designed for packaging powdered and granular materials, particularly suitable for valve bags that require high density, moisture-proof, and leak-proof packaging.

3 (20)

2 (24)

product case

11 (6)

案例1 (6)

案例2 (6)

案例3 (5)

案例4 (5)

案例5 (4)

案例6

12 (5)

Company Advantage

• CSP was incorporated in After years of painstaking effort, our overall strength and brand influence have been greatly improved. It promotes us to become one of the outstanding enterprises in the country.
• Our company has always adhered to the service concept of 'based on integrity and treat people sincerely', and we provide considerate one-stop service for consumers to solve problems promptly.
• Our company enjoys a superior geographical position and convenient transportation. They are advantageous to the transportation of our products such as Mixed production line,Packaging and palletizing production line,Screening Equipment,Packaging And Palletizing Equipment.
• Our products are sold well in many countries around the world.
We are committed to guaranteeing the product quality and after-sales service. Welcome to contact us for cooperation!
