Product details of the powder mixer manufacturers
Product Overview
Many customers are greatly impressed by the aesthetic appearance design of CSPMAC powder mixer manufacturers. The product has gone through the stringent quality check under the supervision of qualified professionals to ensure premium quality. Its foreign markets have been developed by our identifying foreign consumer groups and consumer demand.
Product Information
Want to know more product information? We will provide you with detailed pictures and detailed content of powder mixer manufacturers in the following section for your reference.
Product Description

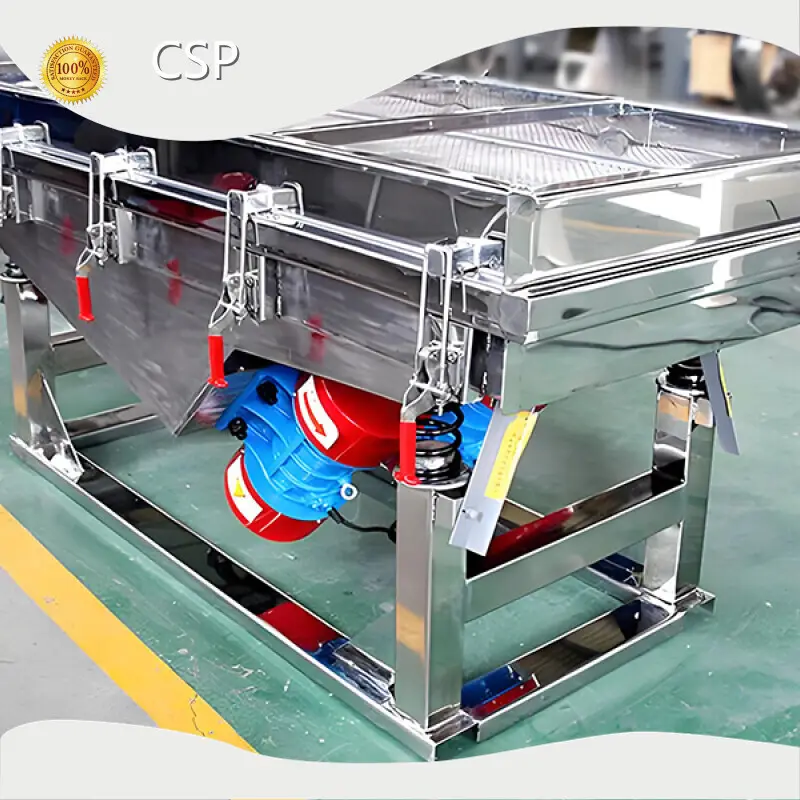

Linear vibrating screen is a kind of screening and grading screen widely used in mining, coal, electricity, chemical, building materials, food, medicine and other industries. The materials are graded and screened according to the particle size. Its vibration mode is linear vibration, mainly composed of screen box, screen frame, screen, vibration motor, shock-absorbing spring, etc.
Important note: Equipment selection is a relatively important link. Please provide detailed information about the materials and process arrangements as much as possible so that our professionals can provide you with high-quality technical services.
Working Principle
The working principle of the linear vibrating screen is based on a single-degree-of-freedom linear vibration system. The screen box is driven by two vibration motors to generate linear vibration. When the vibration motors rotate in the same direction at the same time, the linear vibration generated causes the material in the screen box to move forward on the screen surface. Particles smaller than the screen hole will leak through the screen hole, while particles larger than the screen hole will remain on the screen surface, thereby achieving screening operations. When the vibration motors rotate in the opposite direction, the linear vibration generated causes the material in the screen box to move backward on the screen surface, so as to remove debris on the screen surface.
Key Parameters
|
Model |
Screen size（mm） |
Material particle size（mm） |
Screen surface inclination（°） |
Amplitude（mm） |
Layers（s） |
Power（kW） |
|
SZF516 |
500×1600 |
0.075~20 |
0~7 |
5~8 |
1~5 |
2×（0.08~0.4） |
|
SZF520 |
500×2000 |
2×（0.4~0.75） |
||||
|
SZF525 |
500×2500 |
2×（0.75~1.1） |
||||
|
SZF530 |
500×3000 |
2×（1.1~1.5） |
||||
|
SZF535 |
500×3500 |
2×（1.1~1.5） |
||||
|
SZF1020 |
1000×2000 |
2×（0.75~1.1） |
||||
|
SZF1025 |
1000×2500 |
2×（1.1~1.5） |
||||
|
SZF1030 |
1000×3000 |
2×（1.5~2.2） |
||||
|
SZF1035 |
1000×3500 |
2×2.2 |
||||
|
SZF1040 |
1000×4000 |
2×（2.2~3.0） |
||||
|
SZF1225 |
1200×2500 |
2×（1.5~2.2） |
||||
|
SZF1230 |
585×3000×2 |
2×（2.2~3.0） |
||||
|
SZF1235 |
585×3500×2 |
2×（2.2~3.0） |
||||
|
SZF1535 |
735×3500×2 |
2×（2.2~3.0） |
||||
|
SZF1540 |
735×4000×2 |
2×（3.0~4.0） |
