Vacuum feeder
● It occupies a small space and can complete the powder conveying in a small space. The working space is beautiful and generous, and is not restricted by the distance.
● The entire conveying process is carried out in a closed system, and no powder leakage will occur.
● It is easy to visually inspect. The equipment has no gaps or dead corners that are easy to cause material accumulation, and the surface is easy to visually inspect.
● Reduce the intensity of manual labor and improve work efficiency.
Product Description
The vacuum feeder (vacuum suction feeder) is used for conveying and feeding various powder materials. It occupies a small space and can complete the powder conveying in a small space. The working space is beautiful and generous, and is not restricted by the distance. The entire conveying process is carried out in a closed system, and there will be no powder leakage. It reduces the intensity of manual labor and improves work efficiency.
Important note: Equipment selection is a relatively important link. Please provide detailed information about the materials and process arrangements as much as possible so that our professionals can provide you with high-quality technical services.
Working Principle
The vacuum feeder is composed of a vacuum pump (oil-free and water-free), a vacuum hopper, a compressed air back-blowing device, a pneumatic discharge door device, a material level automatic control device, a stainless steel suction nozzle, a conveying hose, etc. The vacuum feeder uses a vacuum pump to evacuate air, so that the suction nozzle inlet and the entire system are in a certain vacuum state. The powder and granular materials are sucked into the nozzle along with the outside air to form a material airflow, which passes through the suction pipe to reach the hopper, and the air and material are separated in the hopper.
The separated materials enter the receiving equipment. Conveying and discharging are completed by continuously opening and closing the pneumatic three-way valve, and the opening and closing of the pneumatic three-way valve is controlled by the control center. The vacuum feeder is equipped with a compressed air back-blowing device. Each time the material is discharged, the compressed air pulse back-blowing the filter to knock down the powder adsorbed on the surface of the filter, so that the suction can operate normally.
Key Parameters
|
Model |
Power(kw) |
Compressed air consumption |
Air supply pressure |
Conveying capacity |
Conveying distance |
|
ZK-290 |
1.5-3 |
8-10 L/min |
0.4-0.6MPa |
200-1200 kg/h |
≤5m |
|
ZK-420 |
5.5 |
12 L/min |
800-3200 kg/h |
≤5m |
|
|
ZK-600 |
7.5-18.5 |
17-20 L/min |
2000-6000 kg/h |
5-30m |
Layout

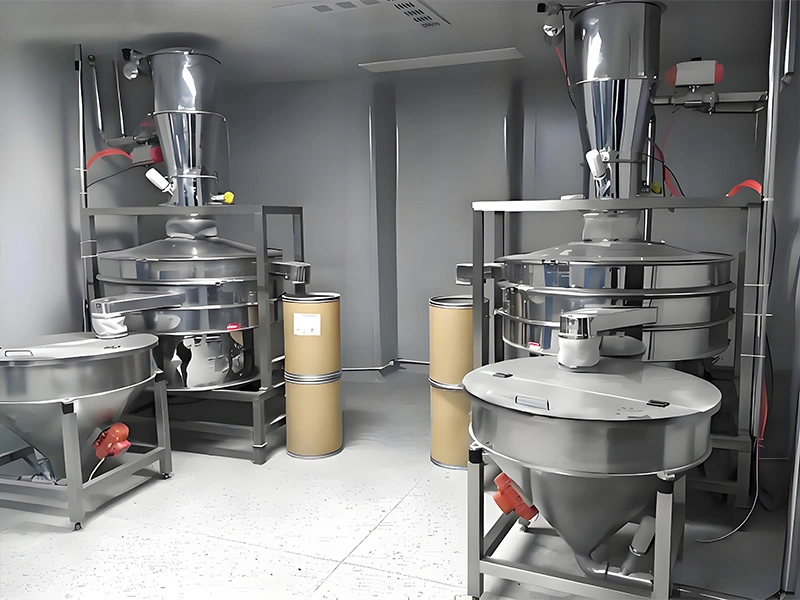

product case
