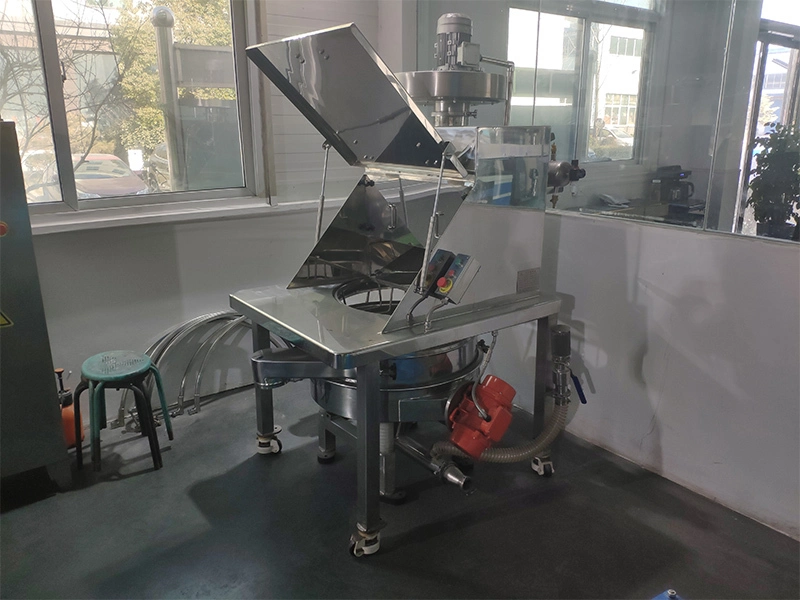

Dust-free feeding station
● The feeding platform is in a negative pressure state, with no dust leakage and dust-free environment protection. No material is lost during the feeding process, protecting the clean environment.
● The feeding process is safe to operate, reducing labor intensity and protecting personnel safety production.
● It can be connected with positive pressure/negative pressure conveying to feed the production line.
Product Description
This equipment is suitable for unpacking, placing, screening and unloading of small and medium-sized bag materials in the food, pharmaceutical, chemical and metallurgical industries. It is especially suitable for manual feeding and pre-screening of powder materials. The dust collecting fan can prevent the dust from flying everywhere during unpacking. When the small bag materials need to be unpacked and poured into the next process, they only need to be unpacked manually and put into the system. The dust generated during feeding is collected by the dust collecting fan. The material can intercept large pieces of material and foreign matter through the vibrating screen (safety screen), so as to ensure that the finished products (qualified materials) that meet the requirements enter the next process.
Important note: Equipment selection is a relatively important link. Please provide detailed information about the materials and process arrangements as much as possible so that our professionals can provide you with high-quality technical services.
Working Principle
Key Parameters
|
Model |
Screen area |
Power（kW） |
Rotation speed（r·p·m） |
Dynamic load |
Static load |
Exciting force (kN) |
Flow |
Wind pressure |
|
WT-800 |
0.42 |
2×0.18 |
1460 |
800N |
1500N |
2.5×2 |
1550-997 |
1217-1641 |
|
WT-1000 |
0.64 |
2×0.25 |
1460 |
500N |
2500N |
5×2 |
1550-997 |
1217-1641 |
