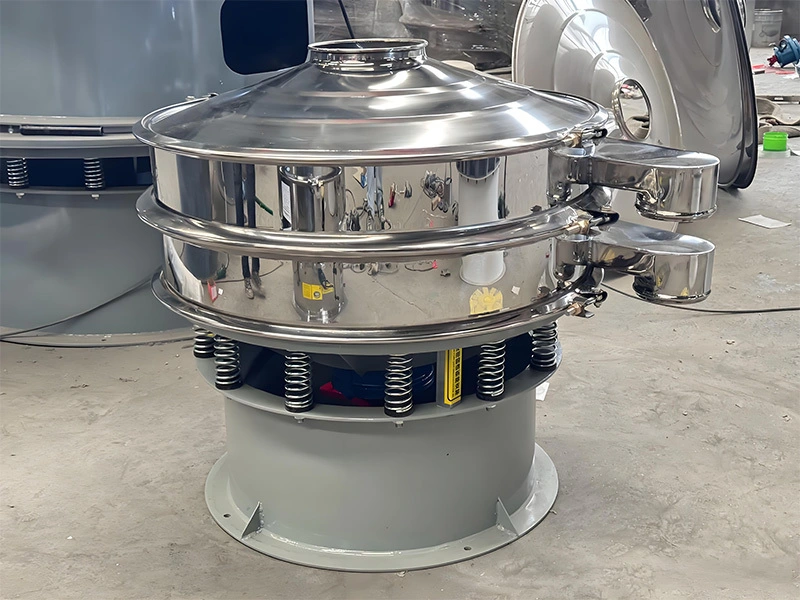

Rotary Vibrating Screen
● High screening efficiency: The equipment has efficient screening capabilities and can perform fine screening and probability screening of materials. It is suitable for screening and filtering of various materials such as particles, powders, and mucus.
● High screening accuracy: The screening mesh of the rotary vibrating screen can reach 500 meshes, and the screen can be layered, up to seven layers, which can meet the screening operations with different particle size requirements.
● Easy operation: The equipment is simple to operate, easy to change the screen, and easy to clean, which reduces the difficulty of operation and maintenance costs.
● Low noise: The equipment has low noise during operation and will not cause noise pollution to the working environment and operators.
● Dust-free and pollution-free: During the screening process of the rotary vibrating screen, the mesh is not blocked and the powder does not fly, realizing dust-free and pollution-free screening operations.
Product Description
The rotary vibrating screen is a high-precision fine powder screening machine with low noise, high efficiency, and fast screen change in 3-5 minutes. It has a fully enclosed structure and is suitable for screening and filtering of materials such as particles, powders, and mucus. The rotary vibrating screen uses an upright motor as the excitation source. Eccentric weights are installed at the upper and lower ends of the motor to convert the motor's rotational motion into horizontal, vertical, and inclined three-dimensional motion, and then transmit this motion to the screen surface. Adjusting the phase angle at the upper and lower ends can change the movement trajectory of the material on the screen surface.
Important note: Equipment selection is a relatively important link. Please provide detailed information about the materials and process arrangements as much as possible so that our professionals can provide you with high-quality technical services.
Working Principle
The vibrating screen uses a vertical vibrating motor as the exciter. Eccentric weights are installed at the upper and lower ends of the vibrating motor to convert the rotating motion of the vibrating motor into horizontal, vertical and inclined three-dimensional motion, and then transmit this motion to the screen surface. Adjusting the phase angles at the upper and lower ends can change the motion trajectory of the material on the screen surface.
Key Parameters
|
Model |
Screen diameters (mm) |
Screen area (m²) |
Screen specifications (mesh/inch) |
Layer(s) |
Power(kW) Vibration Motor |
Power(kW) Ordinary motor |
|
S49-600 |
φ560 |
0.23 |
2-500 |
1-5 |
0.25 |
0.75 |
|
S49-800 |
φ760 |
0.42 |
1-5 |
0.55 |
1.1 |
|
|
S49-1000 |
φ930 |
0.64 |
1-5 |
1.1 |
1.5 |
|
|
S49-1200 |
φ1130 |
0.95 |
1-5 |
1.1 |
1.5 |
|
|
S49-1500 |
φ1430 |
1.61 |
1-5 |
1.5 |
2.2 |
|
|
S49-1800 |
φ1730 |
2.35 |
1-5 |
3 |
3 |
|
|
S49-2000 |
φ1920 |
2.9 |
1-5 |
3 |
3 |
