CSPMAC Vibrating Screen Machine Manufacturer
Product Description

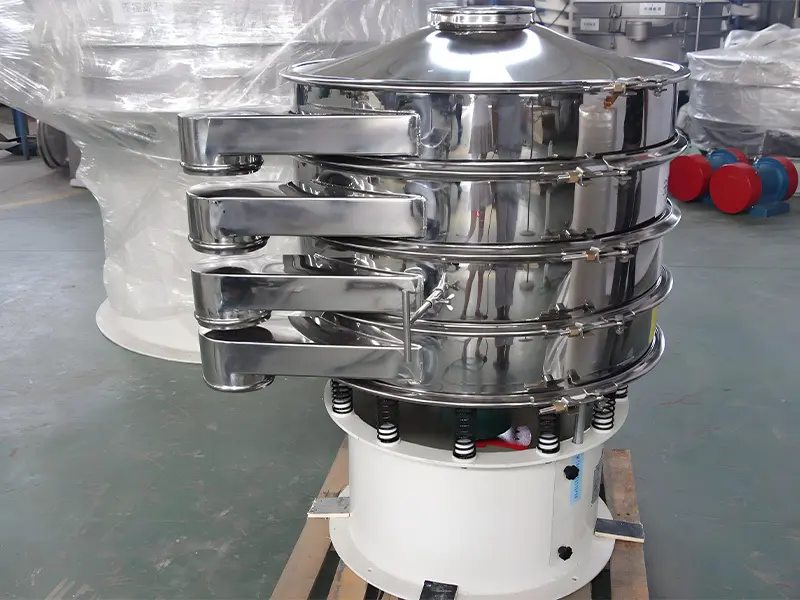

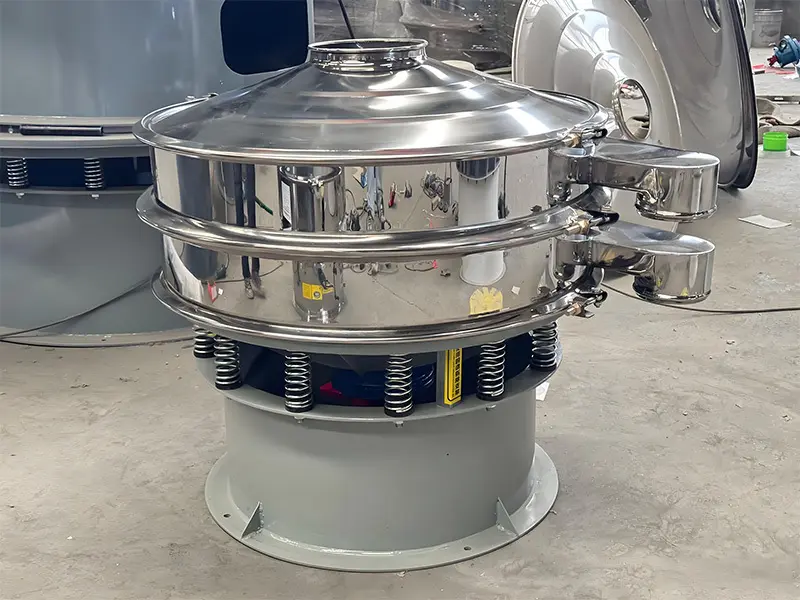

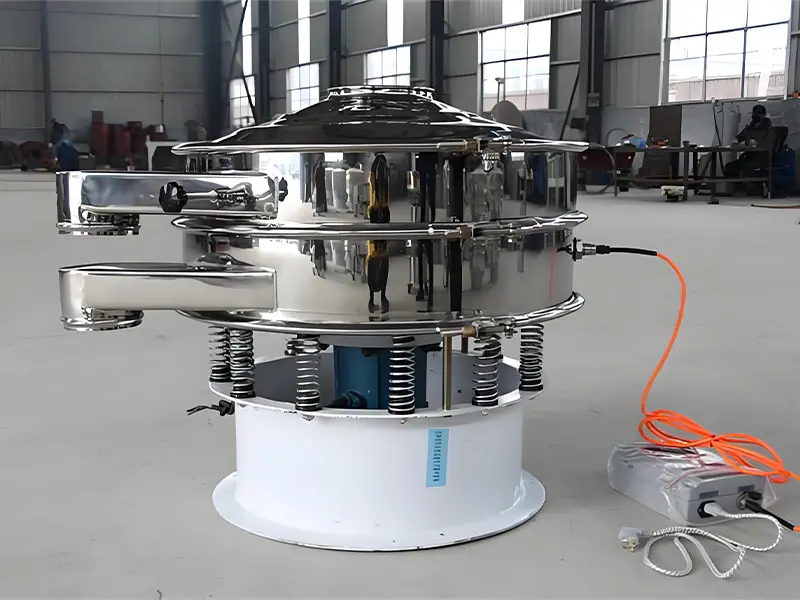

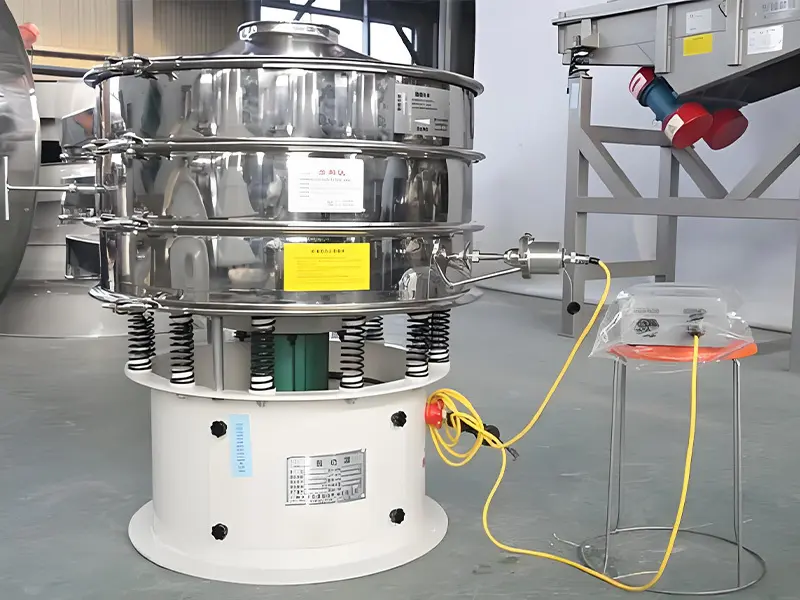

The rotary vibrating screen is a high-precision fine powder screening machine with low noise, high efficiency, and fast screen change in 3-5 minutes. It has a fully enclosed structure and is suitable for screening and filtering of materials such as particles, powders, and mucus. The rotary vibrating screen uses an upright motor as the excitation source. Eccentric weights are installed at the upper and lower ends of the motor to convert the motor's rotational motion into horizontal, vertical, and inclined three-dimensional motion, and then transmit this motion to the screen surface. Adjusting the phase angle at the upper and lower ends can change the movement trajectory of the material on the screen surface.
Important note: Equipment selection is a relatively important link. Please provide detailed information about the materials and process arrangements as much as possible so that our professionals can provide you with high-quality technical services.
Working Principle
The vibrating screen uses a vertical vibrating motor as the exciter. Eccentric weights are installed at the upper and lower ends of the vibrating motor to convert the rotating motion of the vibrating motor into horizontal, vertical and inclined three-dimensional motion, and then transmit this motion to the screen surface. Adjusting the phase angles at the upper and lower ends can change the motion trajectory of the material on the screen surface.
Key Parameters
|
Model |
Screen diameters (mm) |
Screen area (m²) |
Screen specifications (mesh/inch) |
Layer(s) |
Power(kW) Vibration Motor |
Power(kW) Ordinary motor |
|
S49-600 |
φ560 |
0.23 |
2-500 |
1-5 |
0.25 |
0.75 |
|
S49-800 |
φ760 |
0.42 |
1-5 |
0.55 |
1.1 |
|
|
S49-1000 |
φ930 |
0.64 |
1-5 |
1.1 |
1.5 |
|
|
S49-1200 |
φ1130 |
0.95 |
1-5 |
1.1 |
1.5 |
|
|
S49-1500 |
φ1430 |
1.61 |
1-5 |
1.5 |
2.2 |
|
|
S49-1800 |
φ1730 |
2.35 |
1-5 |
3 |
3 |
|
|
S49-2000 |
φ1920 |
2.9 |
1-5 |
3 |
3 |

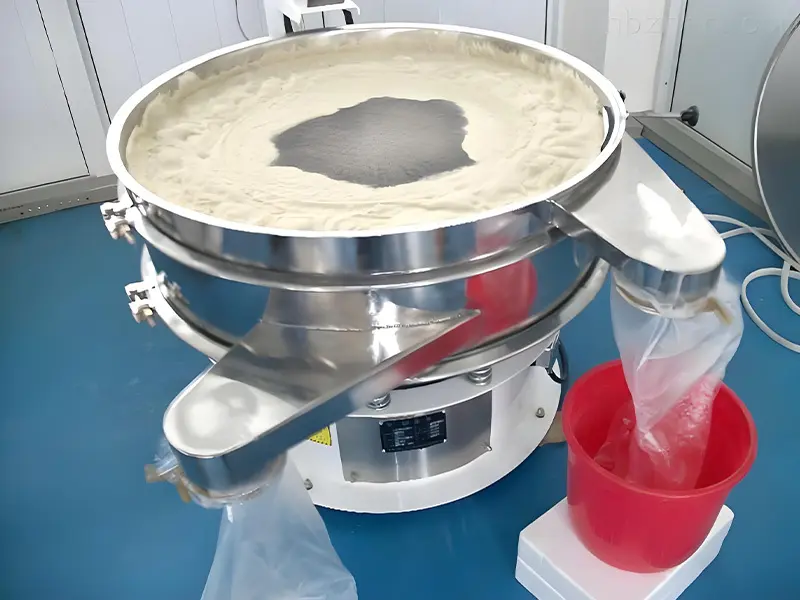

product case
Company Advantages
· The materials CSPMAC vibrating screen machine uses are strictly tested before production.
· Adopt advanced quality testing equipment and methods to ensure the high quality of products.
· ZHENGZHOU CSP MACHINERY CO.,LTD. will provide a broad range of solutions for our vibrating screen machine.
Company Features
· ZHENGZHOU CSP MACHINERY CO.,LTD. keep producing various high-grade vibrating screen machine.
· We have implemented an advanced production control system. This system is highly efficient, which can significantly manage our orders in real-time and optimize our production times.
· ZHENGZHOU CSP MACHINERY CO.,LTD. only produce high class cases for the customers. Welcome to visit our factory!
Application of the Product
CSP's vibrating screen machine is available in a wide range of applications.
We have a professional team and can provide customers with the most appropriate solutions to help customers achieve their goals quickly and effectively.
