Powder Mixer for Sale PRODUCTS Wholesale - CSPMAC

Company Advantages

· powder mixer for sale impresses customers with its appearance and thorough workmanship.

· Our quality check team strictly controls the quality of this product.

· This product is becoming a must for the domestic and international market.

Product Description

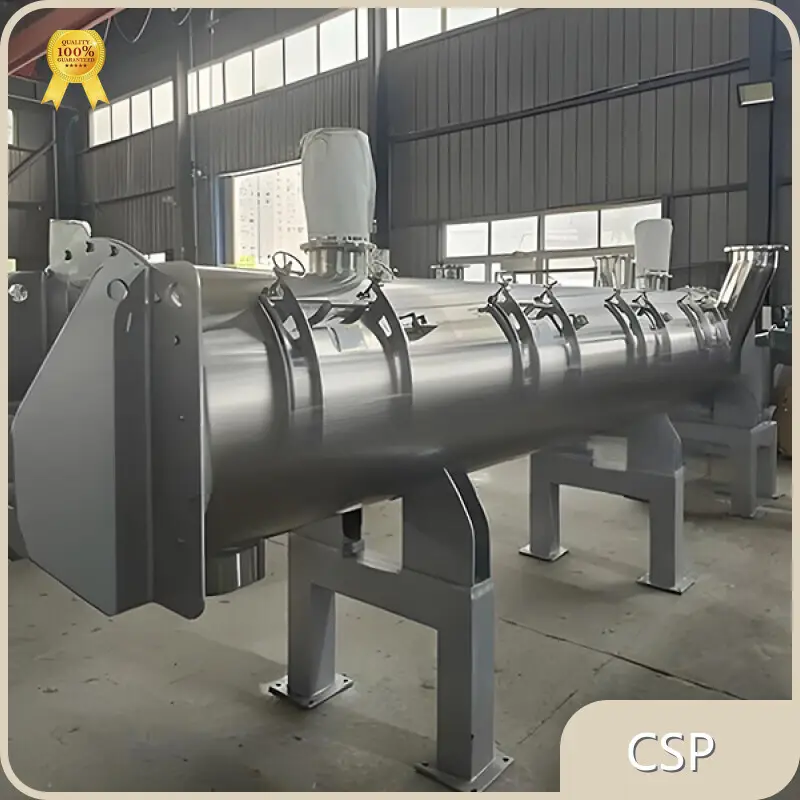

Continuous mixer is a highly efficient mixing equipment, widely used in chemical, pharmaceutical, food, building materials and other industries. Its main feature is that different materials are continuously input into the equipment according to the set ratio.

The residence time of the materials in the cylinder is controlled by adjusting the speed of the conveying equipment, the speed of the mixer and the discharge speed. Under the action of the stirring element, the ideal mixing effect and continuous discharge are achieved. The mixing method is suitable for large-scale production.

Important note: Equipment selection is a relatively important link. Please provide detailed information about the materials and process arrangements as much as possible so that our professionals can provide you with high-quality technical services.

Working Principle

01

Feeding System

- Raw materials are continuously fed into the mixer through multiple feeding ports. The feeding ports are usually located at the top or side of the mixer and can be equipped with metering devices as needed to ensure the precise proportion of raw materials. - The feeding system can be manually or automatically controlled to meet different production needs. In some advanced systems, automatic control can also be performed through PLC to improve the accuracy and efficiency of feeding.

02

Mixing Chamber

- The mixing chamber is the core part of the continuous mixer and is usually made of high-strength stainless steel or other corrosion-resistant materials. The chamber is equipped with special stirring blades or paddles, which are designed to generate strong vortex and shear force. - The structural design inside the chamber enables the materials to be fully dispersed and mixed during the mixing process to avoid agglomeration and dead corners. This design ensures the uniform distribution of materials throughout the chamber.

03

Mixing Mechanism

- The mixing mechanism is driven by an electric motor, which transmits power to the mixing shaft through a reducer. Multiple sets of stirring blades are installed on the mixing shaft, which push the materials to move axially during rotation. - Under the action of the mixing blades, the material moves back and forth along the length of the mixing chamber and is mixed in the radial direction. This dual movement allows the material to be fully mixed in a short time.

04

Mixing process

- When the material enters the mixing chamber, the mixing blade pushes it to one end of the mixing chamber and remixes it at the other end. This continuous pushing and pulling back process causes the material to tumble and mix continuously in the mixing chamber. - Due to the design of the mixing blades, the material not only moves in the axial direction, but also is subjected to shear force in the radial direction, further improving the uniformity of the mixing.

05

Discharging system

- After the mixing is completed, the material is continuously discharged through the discharging port. The discharging port is usually located at the bottom or side of the mixer and can be controlled by a valve or gate to achieve continuous discharging. - The discharging system can also be equipped with a screen or filter to ensure the quality of the final product. In addition, the discharging process can also be precisely controlled by an automated control system to improve the continuity and stability of production.

06

Control system

- Continuous mixers are usually equipped with advanced control systems that can achieve precise control of parameters such as feed rate, stirring speed, mixing time, etc. The control system can be a PLC (Programmable Logic Controller) or a touch screen interface for easy operation and monitoring. - The control system can also record and store production data to facilitate subsequent quality management and process optimization.

1. Motor, reducer (transmission part) 2. Coupling 3. Main shaft 4. Mixing blades (paddles, coulters)

5. Observation port  6. Feed port  7. Discharge port  8. Exhaust and dust removal port  9. Base

Internal structure diagram

12

13

14

15

里面配图 (6)

里面配图 (1)

里面配图 (7)

里面配图 (8)

Features

The single-axis plowshare continuous mixer is mainly based on mixing and supplemented by conveying. Its special internal structure can adapt to the feeding speed of materials within a certain range to achieve the corresponding production output. At the same time, it can also fully mix the materials in a large range to ensure the mixing uniformity. Combined with the uniform feeding equipment, it ensures the consistency and stability of the output material products.

The twin-shaft paddle continuous mixer maximizes output and has a more intense stirring effect to disperse materials. The twin-shaft meshing space can evenly diffuse or extrude materials and can adapt to special materials such as fiber mixtures and granular materials.

里面配图 (2)

里面配图 (3)

里面配图 (4)

里面配图 (5)

The dual-axis gravity-free mixer can be equipped with various add-on components to meet specific industrial and process needs, including:

Process-Specific Configurations: Vacuum or Pressurized Operation: Customized for vacuum or pressurized environments to handle sensitive, reactive, or volatile materials.

Heating/Cooling Systems: Integrated with circulating medium jackets or steam coil jackets for precise temperature control during mixing.

Material-Specific Enhancements: Specialized Coatings: Anti-corrosion, anti-adhesion, or metal-isolating coatings to protect against aggressive, sticky, or reactive materials.

Wear-Resistant Mixing Screws: Screws reinforced with overlay welding of wear-resistant alloys for prolonged service life in abrasive applications.

Liquid Dispersion System: Liquid Spray Module: A pressure-fed spray system (comprising a pressure source, liquid reservoir, and spray nozzles) ensures uniform dispersion of small liquid volumes into bulk materials, enhancing homogeneity and preventing localized clumping.

Thermal Management: Jacketed Designs: Maintain consistent thermal conditions for heat-sensitive or exothermic reactions, ensuring stable mixing performance.

13 (4)

14 (4)

15 (4)

16 (4)

Solution summary

● 1: Use ton bags of raw materials, crane hoisting, and direct feeding with dust collector;

● 2: Set up a multi-layer platform, manually unpack bags and feed, and use a ton belt packaging machine after mixing and discharging;

● 3: Simple use of mixing equipment, direct feeding and direct discharge, and configure forklift loading and unloading;

● 4: Use a manual feeding platform, spiral lift the materials into the finished product warehouse after mixing, and connect the packaging equipment below;

● 5: Use vacuum feeding method, feed on the ground, and use a ton belt packaging machine after mixing and discharging;

● 6: Multi-stage vacuum feeding and transportation, after mixing and storage, packaging;

● 7: Multi-layer operating table design, freight elevator feeding, feeding, warehousing, mixing, storage, packaging, integrated tower structure;

● 8: Use bucket elevator to feed, mix, store, and package;

● 9: Vacuum feeder feeding, mixing, warehousing, packaging, upper and lower integrated structure;

● 10: Manual feeding, mixing, warehousing, packaging, upper and lower integrated structure.

Product case

案例

Shipping photos

Good reasons for working with us

1. Customer feedback

2. Delivery to customer site

3. Installation and debugging process

4. Installation flow chart

5. Company production strength

6. Company production ability

Company Features

· As a renowned producer of powder mixer for sale, ZHENGZHOU CSP MACHINERY CO.,LTD. has a massive market share.

· Our powder mixer for sale is of good quality and competitive price to attract more customers. Our powder mixer for sale is of the durable body with good-quality materials.

· In order to reduce the impact of our products on the environment, we are devoted to consistent innovation in product design, quality, reliability, and recyclability, so as to be responsible for the environment. Contact!

Application of the Product

The powder mixer for sale produced by our company is suitable for various occasions in industry.

While providing quality products, CSP is dedicated to providing personalized solutions for customers according to their needs and actual situations.

Enterprise Advantages

CSP constantly takes talents in to enrich talent team. Now we have a professional and efficient production team, whose team members produce a large number of quality products depending on mature technology.

Our company provides comprehensive, high-level professional services such as consulting and technology in accordance with the actual needs of users.

Persisting in the core value concept of 'struggle, dedication, practicality and innovation', CSP seeks improvement in stability, accelerate the adjustment and create a modern enterprise with core competitiveness and market share.

Built in CSP has a history of years and a wealth of industry experience.

CSP has vigorously explored the domestic and overseas markets in various ways. Mixed production line,Packaging and palletizing production line are currently sold well in some countries and regions in Europe, America, and Australia.
