Company Advantages

· All indicators and processes of CSPMAC powder mixer manufacturers meet the requirements of national and international standards.

· The product meets the requirements of testing after many time trials.

· The product has a bright market prospect and widespread application domain.

Product Description

Traditional way

The traditional way of packaging goods on pallets is to wrap the packaging film, that is, to wrap the polyethylene film layer by layer through a semi-automatic or automatic wrapping machine. This is not only time consuming, but often creates a lot of waste. There are many layers of film and the quality of the packaging is not good enough to protect the goods during transportation, resulting in unnecessary expenditure on packaging materials. If it needs to be dust-proof and moisture-proof, it must be covered with a film. When the buyer inspects the goods, he needs to tear off the stretch film and re-wrap the film, which is a laborious and time-consuming process.

Advanced way

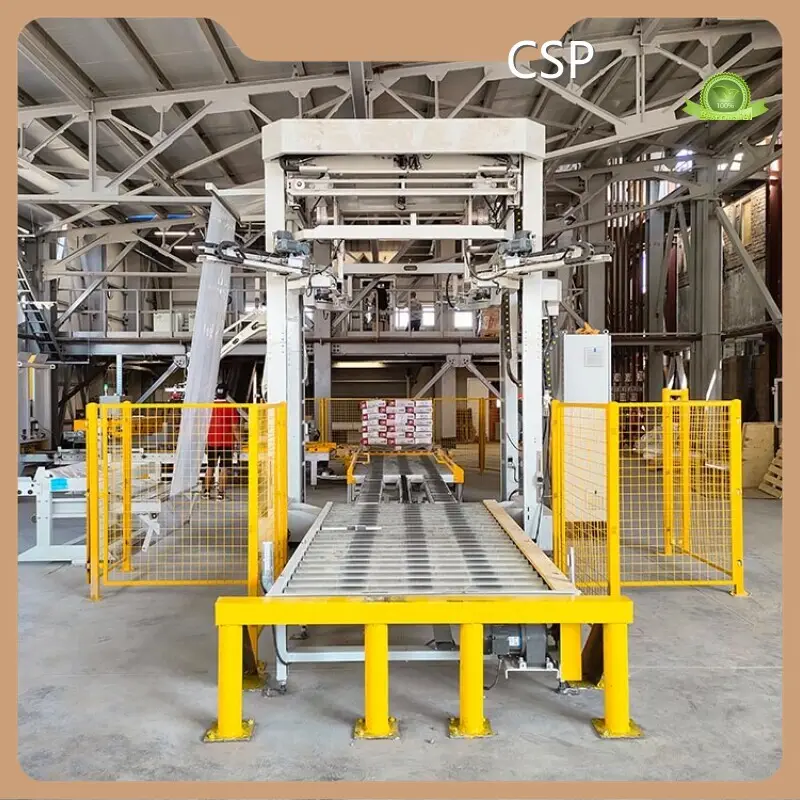

The new high-speed pallet packing method is cold stretch hood, which not only meets the requirements of environmental protection and energy saving, but also provides a convenient way to protect goods. Cold stretch film completely covers the products and the pallet from top to bottom, tightly wrapping, acts as a water and dust protection. Film shrinkage ratio (LLDPE): 17-20%, the thickness is only 0.1mm, and the amount of material per pallet is only about 500-560g, which can greatly reduce the cost of packaging materials.

Productivity is high when wrapping with stretch film, and different sized films can be used to wrap different sized pallets. The high elasticity of the film prevents damage to the goods during transport and storage. Hermetically sealed packaging protects against external influences.

8 (13)

Working Principle

The open top bag filling machine consists of a control system, a feeder, a weighing sensor, a clamping device for bags, a selaing mechanism, a belt conveyor, a frame, and a pneumatic control system. The feeding system uses two-speed feeding, fast feeding ensures output, and slow feeding frequency conversion control ensures accuracy; bag clamp weighing system consists of weighing brackets, sensors and bag clamp arms; the frame supports the entire system, providing stability; The control system controls the feed valve and the bag clamp. The packing shape of the product adopts the clamping of the bag in place, and at the same time, there is enough material in the storage bin, the valve automatically opens, the material is discharged into the bag, and weighing is carried out at the same time. When the first target weight is reached, slow feed continues until the second target weight is reached, stop filling, display the final weighing and automatically lose the bag.

螺旋输送结构
螺旋输送结构
皮带输送结构 (3)
皮带输送结构 (3)

Key Parameters

Pallet size

L1000-1400 x W1000-1400 x H120-150 mm

Pallet height

800-2100 mm (with pallet)

Film thickness

80-150 microns

Stacking speed

max 90 pallets/h

Air consumption

20 Nm³/h

Energy consumption

20 KW

application areas

Full Pneumatic Valve Bag Packing Machine is a specialized automated equipment designed for packaging powdered and granular materials, particularly suitable for valve bags that require high density, moisture-proof, and leak-proof packaging.

3 (20)
3 (20)
2 (24)
2 (24)

product case

11 (6)
11 (6)
4 (22)
4 (22)
9 (13)
9 (13)
10 (11)
10 (11)
12 (5)
12 (5)


Company Features

· The reputation of CSPMAC now has been expanding with the popularity of powder mixer manufacturers.

· CSPMAC attaches great importance to the value of technical power. CSPMAC mastered high technology to produce powder mixer manufacturers. Since its inception, CSPMAC has placed great emphasis on the core values of technological power.

· CSPMAC will try our best to serve customers with insisting on the principle of customer first. Check it!


Product Comparison

Our powder mixer manufacturers is more competitive than similar products, as shown in the following aspects.

Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
