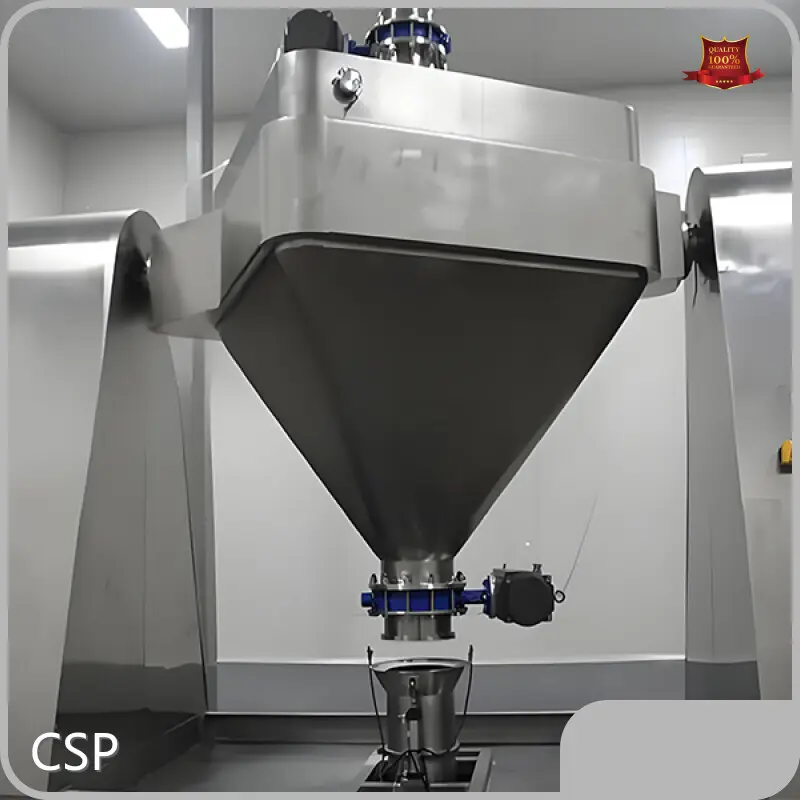

Square-Cone Mixer Pharmaceutical Powder Mixer From China
Product details of the pharmaceutical powder mixer
Product Information
Whatever in color or in size, our pharmaceutical powder mixer surpasses similar products in market. The product prevails over its competitors with stable performance and long service life. Being skilled at solving problems timely, CSPMAC's service team has been trusted deeply by customers.
Product Description
The square cone mixer is a novel material mixer widely used in pharmaceutical, chemical, metallurgical, food, light industry, feed and other industries. The machine can mix powder or granules very evenly, so that the mixed materials can achieve the best effect. The whole machine has a novel design, compact structure, beautiful appearance, mixing uniformity of 99%, and volume loading coefficient of 0.8.
Low rotation height, stable operation, reliable performance, and easy operation; the square cone is in the form of a material cart, which can realize the closed transportation of materials, avoid pollution, and meet GMP requirements; the inner and outer walls of the barrel are polished, without dead corners, easy to discharge and easy to clean.
Important note: Equipment selection is a relatively important link. Please provide detailed information about the materials and process arrangements as much as possible so that our professionals can provide you with high-quality technical services.
Working Principle
Put the materials into a square cone-shaped closed mixing barrel. The axis of symmetry of the hopper forms an angle with the axis of the rotating shaft. The materials with different components move in three dimensions in the closed material door, producing a strong turning and diffusion effect to achieve a mixing effect.
Discharge Port Configuration and Sealing Solutions
To meet diverse process layout requirements, the discharge port of the dual-axis gravity-free mixer can be equipped with either a spherical powder valve or a plum-blossom staggered valve:
|
Spherical Powder Valve |
Features a protruding spherical surface that conforms to the curved base of the mixing chamber, minimizing dead zones and residue. Enables a large-diameter discharge opening for efficient material flow. Provides excellent sealing performance for powders, liquids, and even under vacuum conditions. |
|
|
Plum-Blossom Staggered Valve |
Designed for simplicity and precise control over discharge speed. Can be combined with a long spiral bottom support to stabilize material flow. Ideal for applications requiring adjustable discharge rates. |
|
|
Valve Actuation Options |
Manual, Pneumatic, Electric. |
|
|
Sealing Systems |
Standard Packing Seal ,Skeleton Seal, Mechanical Seal. |
|
Customizable Components for Industry-Specific Requirements
To accommodate diverse industrial and process needs, the mixer can be equipped with the following components:
● Temperature Control Systems:
Circulating Medium Jackets or Steam Coil Jackets: Enable precise temperature regulation during mixing, supporting processes such as post-mixing heating/drying or material cooling.
● Specialized Coatings:
Anti-corrosion, Anti-adhesion, or Metal-Isolating Coatings: Designed for handling aggressive, sticky, or reactive materials, these coatings protect the mixer’s surfaces and enhance longevity.
Can be equipped with a variety of components
|
Specifications |
Effective volume |
Maximum batch output |
Speed |
Power |
Size（mm） |
Weight（kg） |
|
FH-0.3 |
240L |
150 |
14 |
1.5 |
1850×1280×1980 |
600 |
|
FH-0.5 |
400L |
250 |
13 |
2.2 |
2200×1530×2220 |
750 |
|
FH-1 |
800L |
500 |
12 |
4 |
2800×2000×2820 |
1200 |
|
FH-1.5 |
1200L |
750 |
10 |
5.5 |
2930×2330×3355 |
1650 |
|
FH-2 |
1600L |
1000 |
10 |
7.5 |
3300×2550×3280 |
2000 |
|
FH-3 |
2400L |
1500 |
8 |
11 |
3800×3000×3800 |
3000 |
Product case
